Professional Li-ion/NIMH battery charger with
USB-C QC3.0 input.
XTAR stands
in the combination of the principle of technological progress and
responsibility for safety and environmental protection.
With four independently functioning charging bays, for operation on any 5V USB
port or to achieve full power, connect to a Quick Charge USB power
adapter (400613).
Determine actual capacity, charge or discharge batteries to storage
voltage (rated voltage) to conserve batteries during
extended storage, manual charge current setting (optional) or built-in QC
processor to achieve full 4A total output (only with a Quick Charge
USB power supply).nbsp;(only with QC USB power supply) are the most important
additions to the already very successful VC4 and VC4S charger besides the newly
revised housing with support of 20700/21700.
Compatible with all USB mains and car adapters, input voltage and charging
current is intelligently identified and adjusted. Power supply not included. (suitable QC
USB power supply unit400613, 400622)

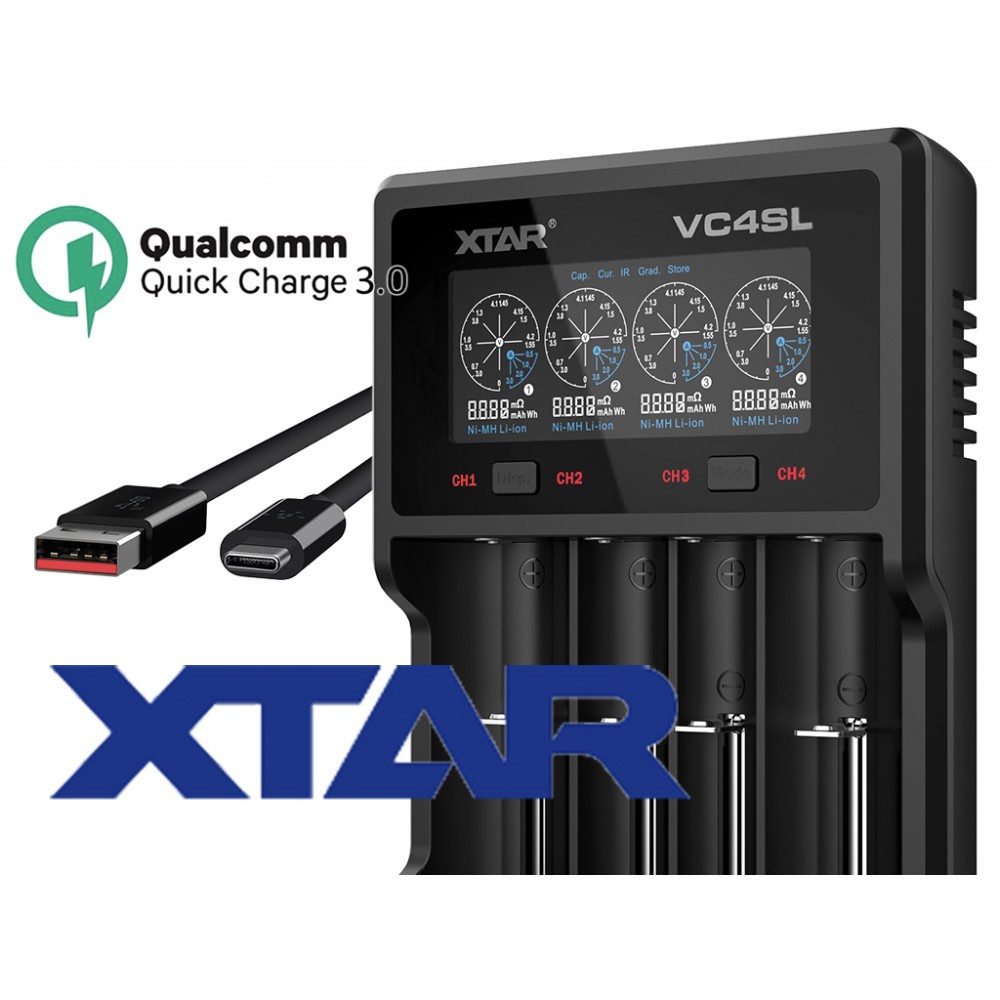

The XTAR VC4SL can detect, display and charge Ni-MH and Li-Ion batteries
simultaneously. The large, clear display shows: charging current, battery
voltage, internal resistance, battery type, charged or discharged
capacity in mAh of all battery compartments according to the
set cycle.
The following
Li-Ion battery types can be charged:
10440 / 14500
/ 14650 / 16340 / 17335 / 17500 / 17670 / 18350 / 18490 / 18500
/ 18650 / 18700 / 20700 / 21700.
The following batteries can only be charged in slot 1 and slot 4: 25500 / 26650
/ 26700 / 32650
3.6V/3.7V lithium-ion batteries.
Also suitable for protected 20700/21700 batteries. max. length
77.5 mm.
The following
Ni/MH Ni/CD battery types can be charged:
AAAA / AAA / AA
/ A
The following batteries can only be charged in slot 1 and slot 4: SC
/ C / D
Product information about the Xtar VC4SL
Charger:
- Xtar VC4S charger has four intelligent
charging bays that work independently of each other.
- LCD display for real time, displaying
charge voltage, battery status, battery type capacity in mAh of
all battery bays.
- Three operating modes:
charge, rate and store mode.
- Test the actual capacity and maximise
the life of the batteries.
- QC3.0 fast charging, max. 3A for a single
slot, total max. 4A
- The Xtar VC4SL can be used with any or
"Quick Charge" USB adapter.
- Soft-start function avoids battery damage
caused by power surge
- 0V activation function, for deeply
discharged batteries
- USB-C input
- IC temperature monitoring, to prevent
overheating from occurring
- Reverse polarity and short circuit
protection
- Three-stage
charging algorithm
- Charging methods TC, CC CV,
- Intelligent identification of input power
and automatic selection of charging method and charging current
- Manual charging current setting for all
four charging bays 0.25A / 0.5A / 1A / 2A / 3A
- Automatic charge stop, charging stops
automatically when battery is full.
Scope of
delivery:
Xtar VC4SL
charger, USB-C to USB-A cable, instruction manual in English, French,
German, Italian, Spanish, Polish, Russian, Turkish.
Safety
instructions:
1. only
charge the batteries intended for the device.
Please always pay attention to the set charging voltage. 3.
3. only charge batteries with the appropriate charging voltage (danger of
explosion).
4. the appliance is for household use, keep away from water and moisture!
5. disassembly and modification are strictly prohibited!
6. please avoid short circuit.
EAN 6952918344339
